Upaya menjaga stabilitas keamanan lingkungan baik sipil ataupun militer menjadi kepentingan bersama bagi masyarakat. Dan guna melakukan pendeteksian serta terhadap upaya pencurian, penyelundupan serta benda dengan kandungan logam yang umumnya terdapat pada senjata tajam, senjati api, bahan peledak dan barang berbahaya lainnya, diperlukan suatu alat dan sistem yang dapat mengakomodir kebutuhan tersebut.
X-ray inspection system atau baggage scanner adalah alat pendeteksi isi barang bawaan seperti tas, koper dan lainnya. X-ray scanner akan memindai dan menampilkan isi barang bawaan pada layar monitor melalui pencitraan radiasi elektromagnetic atau sinar-x yang dipancarkan oleh alat tersebut.
ZKX5030A X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry on baggage, small cargo parcels.
X5030A uses reliable high quality single energy X-ray generator. With the superb image algorithm, X5030A could offer clear scanning image, which allows operators to identify potential threat items visually.
With ergonomic modern design, X5030A could help operators to identify suspicious items fast and accurately.
Dimmension : 2492mm × 940mm × 1223mm
Speed : 0.20 m/s
Height of Transmission Belt : 1000 mm
Maximum Load : ≤280Kg (Adequate distribution)
Wire Resolution : 34 AWG (0.16mm metal wire)
Space Definition : Horizontal Φ1.0mm \ Vertical Φ2.0mm
Penetrate Definition : 32 AWG
Penetration : 8mm Steel board
Monitor : 17 inch LED
System Function : High density alarm, TIP, Luggage counter, System running timer, X-ray emitting timer, System maintainance, Training, 64 times continuous zoom in
Optional Function : Bidirection scan, Electrical weighing system, Fingerprint Console Board, Console Desk
Film Safety : ASA/ISO1600 standard of film safety
X-ray System
Tube Voltage : 80Kv
Cooling : Seal oil cooling / 100%
Single Inspection Dosage Rate ≤1.0 μ Gy
Radiation Leak Dosage 0.1μ Gy/h (5cm from the surface)
Installation Specification
Package Size : L1900mm × W990mm × H1320mm
Package Weight : 410KG
Power Consumption : 1 kVA
Noise : 53.8 dB(A)
Highlights
• Offer higher Wire Resolution with HAMAMATSU® X-ray detector
• Pseudo-color scanning image
• Widely usable for small parcels
• Excellent, ergonomic industrial design
• True-color scanning image
• Widely usable for carry-on baggage
Standard
• Energy Saving Mode
Optional
• Bidirection scan
• Electrical weighing system
• Fingerprint Console Board
• Console Desk

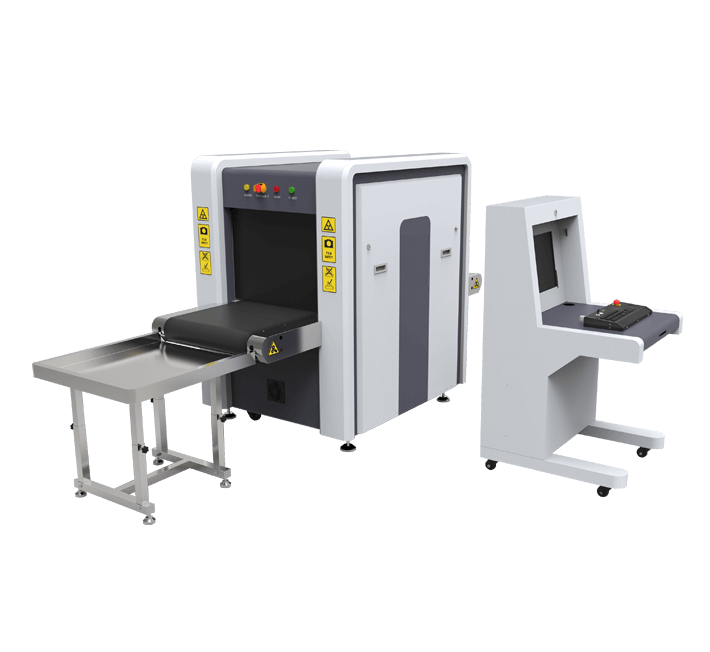

Dual energy XR6550 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels.
XRX6550 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, it could offer clear scanning image, which allows operators to identify potential threat items visually. it has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password.
With ergonomic modern design, XR6550 could help operators to identify suspicious items fast and accurately.
Tunnel Size : W660mm × H510mm
Speed : 0.20 m/s
Height of Transmission Belt : 1300 mm
Maximum Load : ≤180 kg (Adequate distribution)
Wire Resolution : 40 AWG (0.0787mm metal wire)
Space Definition : Horizontal Φ1.0mm \ Vertical Φ2.0mm
Penetrate Definition : 34 AWG
Penetration : 40mm Steel board
Monitor : 17 inch LED
System Function : High density alarm, Explosive/Drug auxiliary detect,TIP, Luggage counter, System running timer, X-ray emitting timer, Training，64 times continuous zoom in
Optional Function : Video surveillance system, Bidirection scan, Electrical weighing system, Energy saving mode, Ultrasonic rat repellent
Film Safety : ASA/ISO1600 standard of film safety
X-ray System
Tube Voltage 150 Kv
Cooling Seal oil cooling / 100%
Dual Inspection Dosage Rate ≤1.0 μ Gy
Radiation Leak Dosage 0.1μ Gy/h (5cm from the surface)
Installation Specification
Package Size : L2200mm × W1135mm × H1515mm
Console Desk Size : L830mm × W800mm × H1330mm
Package Weight : 680KG+105KG (Console desk)
Power Consumption : 1 kVA
Noise : 53.8 dB(A)
Highlights
• Offer higher Wire Resolution with HAMAMATSU® X-ray detector
• True-color scanning image
• Innovative fingerprint identification
• Widely usable for carry-on baggage
Standard
• Fingerprint Console Board
• Console Desk
• Bidirectional Scan
Optional
• Energy Saving Mode
• Video surveillance system
• Electrical weighing system
XREI-V6040 X-ray Security Inspection Equipment for mail, parcels, handbags, briefcases, baggage etc. It can detect contraband, weapons, dangerous and illegal items.
XREI-V6040 is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is widely used in the areas of critical infrastructure, government buildings, public transportation, international events, aviation, venues or hotels.
Tunnel Size : 624 mm（W）× 425 mm（H）
Conveyor Speed : 0.2m/s
Conveyor Height : 678mm
Max. Load : 160 kg（Evenly distributed）
Image resolution : 19’’LCD 1440×900
Date & Time Display
Luggage Counting
System Working Timing
X-Ray Emission
Working Status Display
User Management
Fault Self-diagnosis and Maintenance Functions
Alarm Function
Urgent Stop
Limits of Authority Management for Operator
Self-check Power-On
Image Magnification Display
Save and Retrieval
Image Navigation
Bi-directional Scanning
Image Recognition Training
Network Interface
Browse image
